    Model L46H7
    Android CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Display Screen Size 46''
    Resolution 1920x1080
    Product Size (mm) 690(H)x1850(V)x50(D)
    Display Size (mm) 572.67(H)x1018.08(V)
    Brightness 400 cd/m2
    Aspect Ratio 9:16
    Contrast Ratio 4000:1 typ
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Working Temperature 0℃ to 50℃
    Sound 6W, 8Ω
    Colors 16.7M
    Program Input Port USB 2.0 auto import

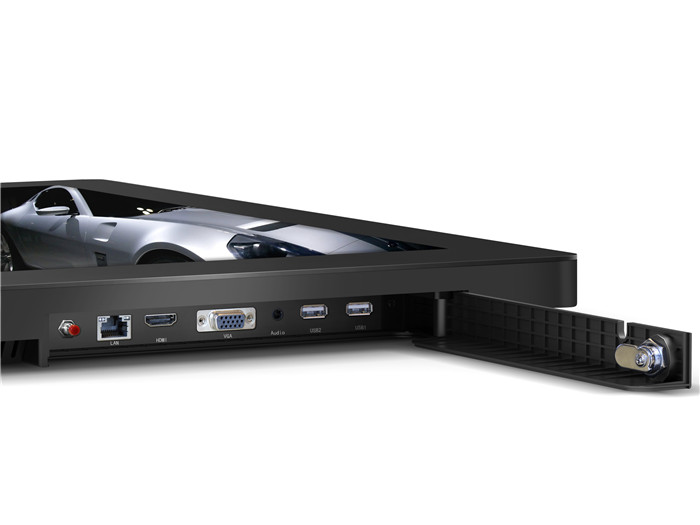

    AV Signal Input Port VGA, HDMI, Audio (3.5mm)
    Viewing Angle 1780
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF
    Audio: MP3
    Timer On/Off Support (Set by daily or weekly)
    Scrolling Text Supported by EzPoster and CDMS software
    Multi zone display

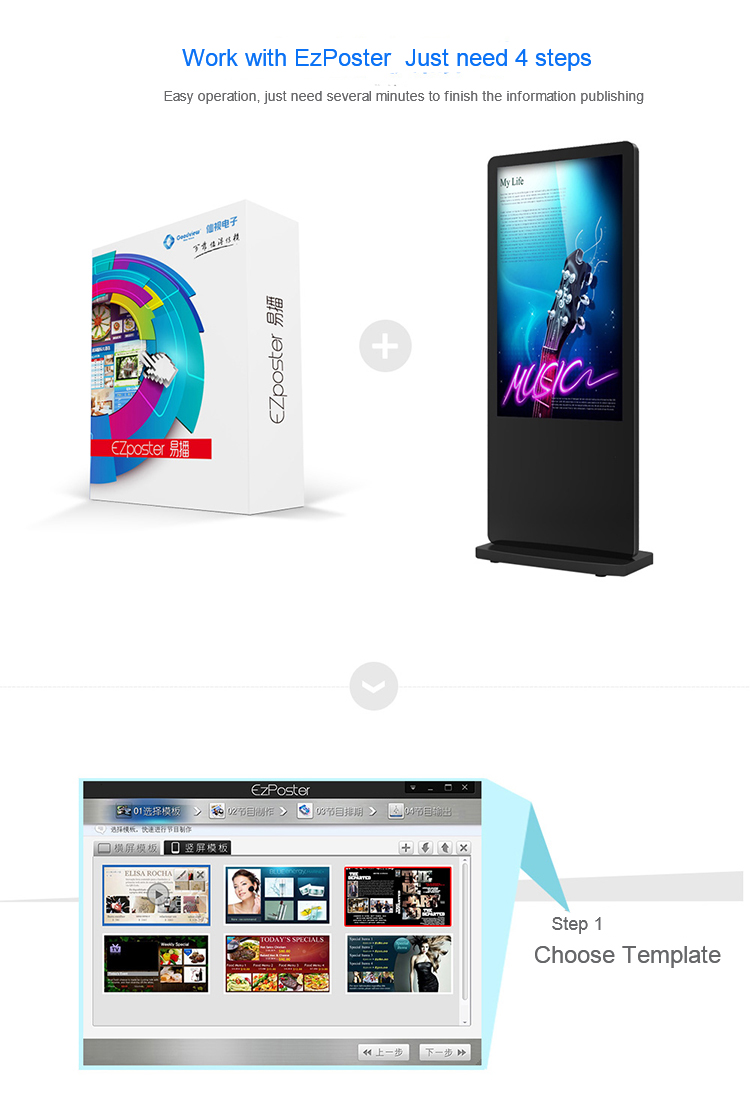

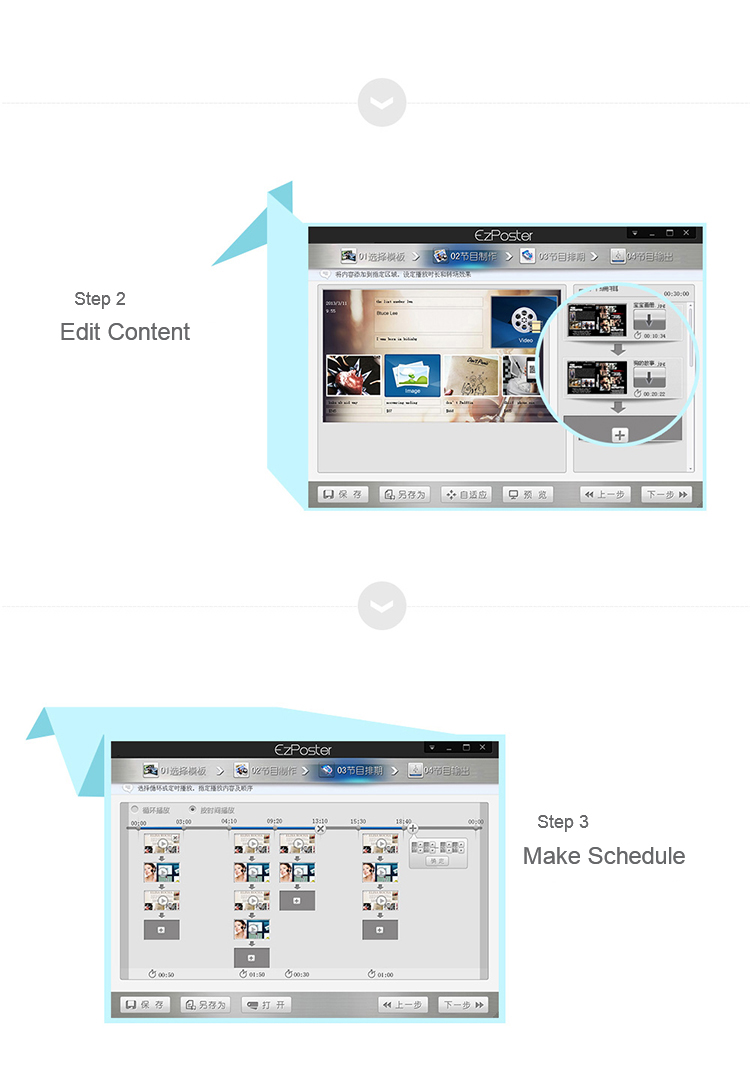

    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Control, CD
  •

    Model  L55H7
    Android CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Display Screen Size 55''
    Resolution 1920x1080
    Product Size (mm) 813(H)x1960(V)x50(D)
    Display Size (mm) 680.4(H)x1209.6(V)
    Brightness 400 cd/m2
    Aspect Ratio 9:16
    Contrast Ratio 5000:1 typ
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Working Temperature 0℃ to 50℃
    Sound 6W, 8Ω
    Colors 16.7M
    Program Input Port USB 2.0 auto import
    AV Signal Input Port VGA, HDMI, Audio (3.5mm)
    Viewing Angle 1780
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF
    Audio: MP3
    Timer On/Off Support (Set by daily or weekly)
    Scrolling Text Supported by EzPoster and CDMS software
    Multi zone display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Control, CD


  • Model PF22H7
    Android CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Display Screen Size 22''
    Resolution 1920x1080
    Product Size (mm) 585.6(H)x378.6(V)x33.7(D)
    Display Size (mm) 476.64(H)x268.11(V)
    Brightness 250 cd/m2
    Colors 16.7M
    Viewing Angle 1780
    Aspect Ratio 16:9
    Contrast Ratio 1000:1 typ



    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Working Temperature 0℃ to 50℃
    Program Input Port USB 2.0 auto import
    AV Signal Input Port VGA, HDMI, Audio (3.5mm)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF                   Audio: MP3
    Timer On/Off Support (Set by daily or weekly)
    Scrolling Text Supported by EzPoster and CDMS software
    Multi zone display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Sound 2W, 5Ω
    Accessories Remote Control, CD, Wall Mount Plate


  •

    Model PF32H7
    Android CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Display Screen Size 32''
    Resolution 1366x768
    Product Size (mm) 825.6(H)x520.6(V)x40(D)
    Display Size (mm) 697.68(H)x392.27(V)
    Brightness 320 cd/m2
    Colors 16.7M
    Viewing Angle 1780
    Aspect Ratio 16:9
    Contrast Ratio 4000:1 typ



    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Working Temperature 0℃ to 50℃
    Program Input Port USB 2.0 auto import
    AV Signal Input Port VGA, HDMI, Audio (3.5mm)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF                   Audio: MP3
    Timer On/Off Support (Set by daily or weekly)
    Scrolling Text Supported by EzPoster and CDMS software
    Multi zone display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Sound 2W, 5Ω
    Accessories Remote Control, CD, Wall Mount Plate





  • Model PF42H7


    Android CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Display Screen Size 42''
    Resolution 1920x1080
    Product Size (mm) 1041.6(H)x634.6(V)x40(D)
    Display Size (mm) 930.24(H)x523.26(V)
    Brightness 350 cd/m2
    Colors 16.7M
    Viewing Angle 1780
    Aspect Ratio 16:9
    Contrast Ratio 3000:1 typ
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Working Temperature 0℃ to 50℃
    Program Input Port USB 2.0 auto import
    AV Signal Input Port VGA, HDMI, Audio (3.5mm)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF
    Audio: MP3
    Timer On/Off Support (Set by daily or weekly)
    Scrolling Text Supported by EzPoster and CDMS software
    Multi zone display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Sound 2W, 5Ω
    Accessories Remote Control, CD




Solution:

Digital signage system brings people more options in public business, while interactive digital signage system brings more amazing effect.

Digital signage system is the most effective way to deliver information to consumers, which has higher advantage comparing with traditional signage. DS system is more attractive, more targeted, and more convenient during information and advertisement delivery.



Product Pictures
Product PicturesProduct Pictures
Product Pictures
Product Pictures
Product Pictures
Product Pictures
Product Pictures
Product Pictures

Product information Date Language File
QSG LxxH7&PFxxH7&MxxSA-V1.0 2015/04/09 English
User Manual LCD Digital Signage Display User Manual 2015/04/09 English
