  • M32ST
  • M42ST
  • M46ST
  • M55ST
  •

    Model (6 points touch) M32ST
    Backlight Type LED
    Display Screen Size 32''
    Product Size (mm) 747(H)x444(V)x66(D)
    Touch Size (mm) 697.68(H)x392.25(V)
    Pixel Pitch 0.51075(H)x0.1075(V)
    Resolution 1366x768
    Brightness 320 cd/m2
    Contrast Ratio 4000:1 typ
    Viewing Angle 1780
    Colors 16.7M
    Touch resolution 4096x4096
    Response Speed ≤16ms
    Input Method Finger, gloved hand, or any other pointer
    Touch durability Unlimited
    Touch Lifetime More than 100 million times
    Touch Activation Force No pressure required
    Minimum Touch Object 5.2mm
    Light Transmission 88%(tempering glass), 92%(AR glass),  up to 100% (no glass)
    Supported Operation System Windows8/Windows7/Windows 2000/xp/2003/Vista
    Interface USB
    Color Temperature 10000K
    LCD Panel Life Time 50000 hours
    Speakers 2W x2 ,4Ω
    Power Consumption 43W
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Input Port VGA, HDMI, Audio, USB
    Accessories Remote control, AC Power Cord
  •

    Model (6 points touch) M42ST
    Backlight Type LED
    Display Screen Size 42''
    Product Size (mm) 978(H)x577(V)x60(D)
    Touch Size (mm) 930.24(H)x523.26(V)
    Pixel Pitch 0.4845(H)x0.4845(V)
    Resolution 1920x1080
    Brightness 350 cd/m2
    Contrast Ratio 3000:1 typ
    Viewing Angle 1780
    Colors 16.7M
    Touch resolution 4096x4096
    Response Speed ≤16ms
    Input Method Finger, gloved hand, or any other pointer
    Touch durability Unlimited
    Touch Lifetime More than 100 million times
    Touch Activation Force No pressure required
    Minimum Touch Object 5.2mm
    Light Transmission 88%(tempering glass), 92%(AR glass),  up to 100% (no glass)
    Supported Operation System Windows8/Windows7/Windows 2000/xp/2003/Vista
    Interface USB
    Color Temperature 10000K
    LCD Panel Life Time 50000 hours
    Speakers 2W x2 ,4Ω
    Power Consumption 62W
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Input Port VGA, HDMI, Audio, USB
    Accessories Remote control, AC Power Cord
  •

    Model (6 points touch) M46ST
    Backlight Type LED
    Display Screen Size 46''
    Product Size (mm) 1066(H)x622.5(V)x60(D)
    Touch Size (mm) 1018.08(H)x572.67(V)
    Pixel Pitch 0.530(H)x0.530(V)
    Resolution 1920x1080
    Brightness 350 cd/m2
    Contrast Ratio 5000:1 typ
    Viewing Angle 1780
    Colors 16.7M
    Touch resolution 4096x4096
    Response Speed ≤16ms
    Input Method Finger, gloved hand, or any other pointer
    Touch durability Unlimited
    Touch Lifetime More than 100 million times
    Touch Activation Force No pressure required
    Minimum Touch Object 5.2mm
    Light Transmission 88%(tempering glass), 92%(AR glass),  up to 100% (no glass)
    Supported Operation System Windows8/Windows7/Windows 2000/xp/2003/Vista
    Interface USB
    Color Temperature 10000K
    LCD Panel Life Time 50000 hours
    Speakers 2W x2 ,4Ω
    Power Consumption 82W
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Input Port VGA, HDMI, Audio, USB
    Accessories Remote control, AC Power Cord
  •

    Model (6 points touch) M55ST
    Backlight Type LED
    Display Screen Size 55''
    Product Size (mm) 1256(H)x728.5(V)x60(D)
    Touch Size (mm) 1209.6(H)x680.4(V)
    Pixel Pitch 0.63(H)x0.63(V)
    Resolution 1920x1080
    Brightness 400 cd/m2
    Contrast Ratio 4000:1 typ
    Viewing Angle 1780
    Colors 16.7M
    Touch resolution 4096x4096
    Response Speed ≤16ms
    Input Method Finger, gloved hand, or any other pointer
    Touch durability Unlimited
    Touch Lifetime More than 100 million times
    Touch Activation Force No pressure required
    Minimum Touch Object 5.2mm
    Light Transmission 88%(tempering glass), 92%(AR glass),  up to 100% (no glass)
    Supported Operation System Windows8/Windows7/Windows 2000/xp/2003/Vista
    Interface USB
    Color Temperature 10000K
    LCD Panel Life Time 50000 hours
    Speakers 2W x2 ,4Ω
    Power Consumption 117W
    Input Power Voltage AC 110-240 V (50Hz-60Hz)
    Input Port VGA, HDMI, Audio, USB
    Accessories Remote control, AC Power Cord



More and more industries have been starting to use multi touch display, like public information inquiry, multi media education, industry control, military command, video game, food menu system and so on. This new information conveying and communication method has brought more business possibilities to commercial display market.

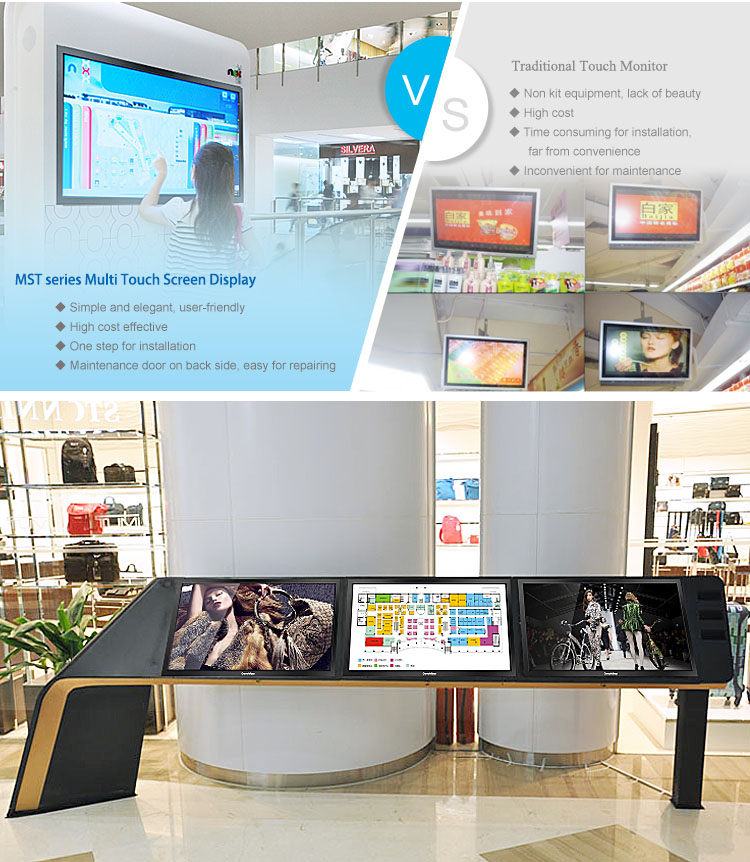

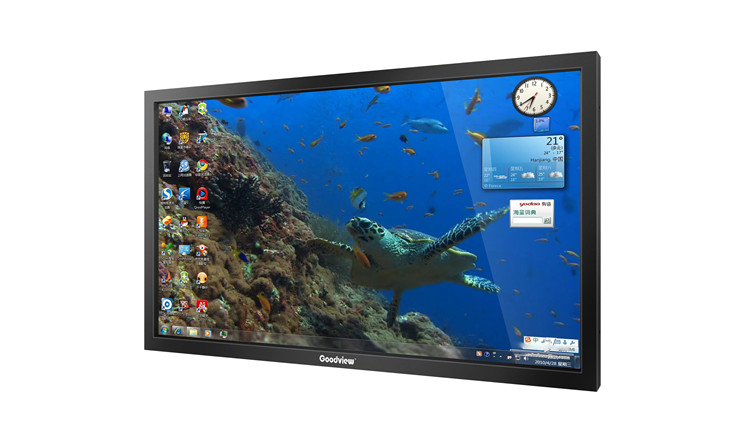

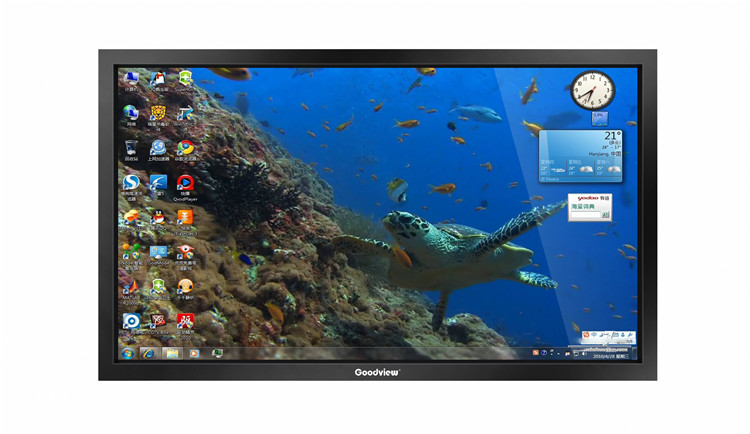

Goodview MxxST (wall mounting type) is using advanced IR touch frame technology, high accuracy and high responding speed, 6 points touch experience simultaneously, plug and play without installing touch driver. Its attractive appearance design is popularly use for fast food chain, ticket center, school, airport, hotel lobby, stock exchange, cinema, enterprise, exhibition, shopping mall, and so on.



Display Solution

MST + Computer








Product information Date Language File
User Manual Universal User Manual 2015/04/09 English
QSG MxxS4&PD&MxxST&MxxSD-V1.0 2015/04/09 English
